Monopole Tower steel telecom tower designed according to GB T 700 and GB T 1591 standards ensuring and structural integrity for telecom

Büyük resim : Monopole Tower steel telecom tower designed according to GB T 700 and GB T 1591 standards ensuring and structural integrity for telecom

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Jiayao
Sertifika:	ISO9001:2008 COC
Model numarası:	Monopole Kulesi

Ödeme & teslimat koşulları:

Min sipariş miktarı:	4 Ton
Fiyat:	US$1600,1-100Tons;US$1000,>=100 Tons
Ambalaj bilgileri:	Ahşap Kutularda Paketlenir veya Galvanizli Saclarla Paketlenir
Teslim süresi:	15 gün
Ödeme koşulları:	L/C, T/T
Yetenek temini:	Ayda 500 ton

İletişim Şimdi konuşalım.

Monopole Tower steel telecom tower designed according to GB T 700 and GB T 1591 standards ensuring and structural integrity for telecom

Açıklama

Tasarım Kodu:	ANSI/TIA-222-G/H/F, EN 1991-1-4 ve EN 1993-3-1	Galvanizleme Standardı:	ASTM A123/ ISO 1461
Malzeme:	Q345B/A572	Sertifika:	ISO9001:2008 COC
Ürün adı:	Sıcak Daldırma Galvanizli Monopole Tower 5G Wifi Telekom Çatı İletişim Kulesi	Rüzgar Hızı:	>=60M/S
Ömür boyu:	25 yıldan fazla	Yapı:	Monopole Kulesi
Renk:	Özelleştirilmiş Renk	Tedarik Tipi:	Fabrika
Anten Braketleri:	2-4 Adet	Üst çap:	0,5 Metre
Başvuru:	Telekomünikasyon, yayıncılık	Tedarik Tarzı:	Üretici
Şekil:	Yuvarlak	Yüzey tedavisi:	Sıcak galvanizli
Tedarik Türü:	Üretici	Hod Yüzey İşlemi:	Sıcak Daldırma Galvanizleme
anten direği:	3-10	Kurulum yöntemi:	Cıvatalı Montaj
Malzeme Şekli:	Çelik Çubuk, Açı Çelik	Servis ömrü:	30 yıldan fazla
Yükseklikler:	9-40 m	Yük kapasitesi:	500 kg
Direk Yapısı:	Çoklu yüzler	Oem:	TAMAM

JIAYAO CO.,LTD

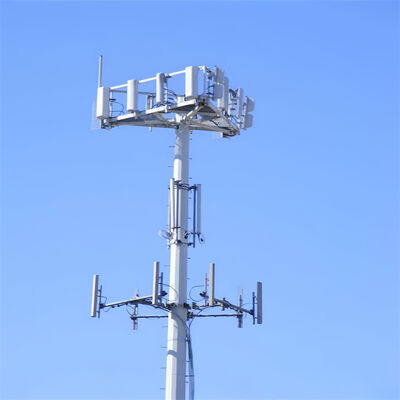

A monopole telecom tower (often called a telecom monopole) is a single-shaft, self-supporting structure tailored for urban and densely populated areas, defined by its compact cylindrical or polygonal shape. Unlike open-truss lattice towers, this tower features a solid/semi-solid single shaft—making it visually unobtrusive and ideal for space-constrained, aesthetic-sensitive locations.

Product Description

1.key Details:
Place of Origin: Hebei, China (Mainland) ; Brand Name: Jaoyao or OEM ; Model Number: Telecom Tower

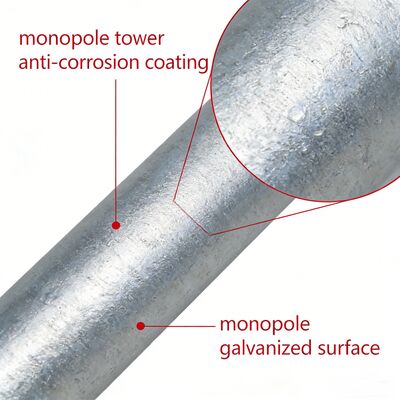

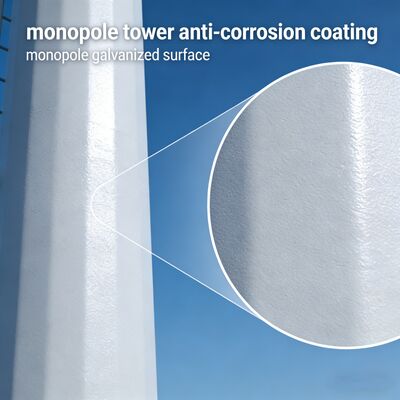

Surface treatment: Hot Dip Galvanizied or painted.
2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.

3. Technical Data

Design
1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
Test
17. Factory test	Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test

Capacity
18. Maximum Production Capacity	50,000 TON per annum

Core Structural & Design Features

Single-shaft shape: Typically rolled-steel cylindrical (or welded polygonal) shafts, with diameters ranging 0.5–2m (scaled by tower height).
Height range: 10–60m (customizable for 5G microstations or urban communication hubs).
Integrated components: Built-in internal climbing ladders (with fall-arrest systems), external antenna brackets, and optional camouflage (e.g., billboard wraps).
Tapered design: Slightly narrower at the top to optimize wind load resistance (suitable for urban wind conditions up to 180km/h).
