Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh

Büyük resim : Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Jiayao
Sertifika:	ISO9001:2008 COC
Model numarası:	Monopole Kulesi

Ödeme & teslimat koşulları:

Min sipariş miktarı:	4 Ton
Fiyat:	US$1600,1-100Tons;US$1000,>=100 Tons
Ambalaj bilgileri:	Ahşap kutulara ya da galvanizli levhalara paketlenmiş
Teslim süresi:	15 gün
Ödeme koşulları:	L/C, T/T
Yetenek temini:	Ayda 500 ton

İletişim Şimdi konuşalım.

Monopole Tower Telecom Steel Structure Hot Dip Galvanized Painted Design Code ANSI TIA 222 G H F Wind Speed Up to 250 kmh

Açıklama

Standart:	ISO9001:2008	Malzeme:	Q345B/A572
Sertifika:	ISO9001:2008 COC	Ürün Adı:	Sıcak Daldırma Galvanizli Monopole Tower 5G Wifi Telekom Çatı İletişim Kulesi
Yükseklik:	5-85M	Rüzgar Hızı:	>=60m/s
Ömür boyu:	25 yıldan fazla	Tasarım Kodu:	ANSI/TIA-222-G/H/F, EN 1991-1-4 ve EN 1993-3-1
Yapı:	Monopole Kulesi	Renk:	Özelleştirmek
Tedarik Tipi:	Üretici	Anten Braketleri:	2-4 Adet
Üst çap:	0,6 metre	Başvuru:	Hücresel Ağ, Radyo İletimi
Tedarik Tarzı:	Üretici	şekil:	Tek tüp
Yüzey tedavisi:	Sıcak galvanizli	Tedarik türü:	Üretici
Hod Yüzey İşlemi:	Sıcak Daldırma Galvanizleme	anten direği:	3-10
Kurulum yöntemi:	Cıvatalı Montaj

JIAYAO CO.,LTD

A monopole telecom tower (often called a telecom monopole) is a single-shaft, self-supporting structure tailored for urban and densely populated areas, defined by its compact cylindrical or polygonal shape. Unlike open-truss lattice towers, this tower features a solid/semi-solid single shaft—making it visually unobtrusive and ideal for space-constrained, aesthetic-sensitive locations.

Product Description

1.key Details:
Place of Origin: Hebei, China (Mainland) ; Brand Name: Jaoyao or OEM ; Model Number: Telecom Tower
Surface treatment: Hot Dip Galvanizied or painted.
2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.

3. Technical Data

Design

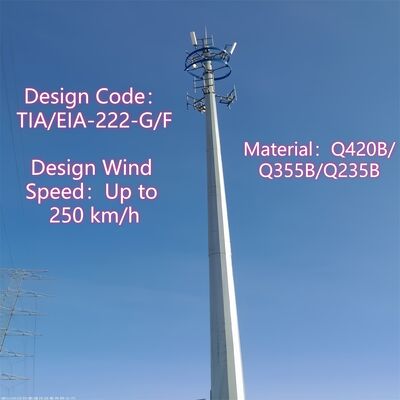

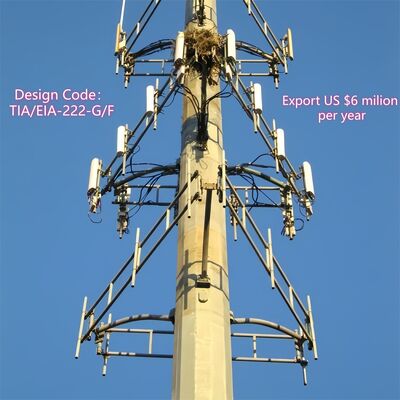

1. Design Code	ANSI/TIA-222-G/H/F
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q345B, Q345C,Q3455D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2

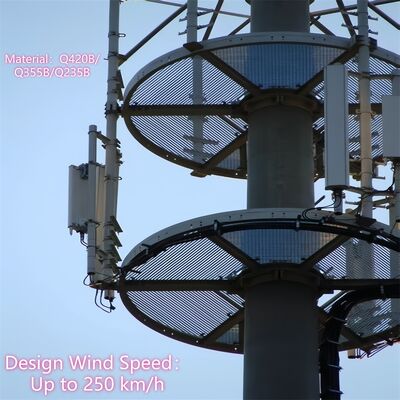

3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)

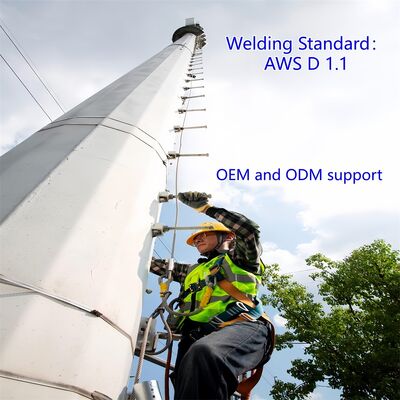

13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
Test
17. Factory test	Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test

Capacity
18. Maximum Production Capacity	50,000 TON per annum

Core Structural & Design Features

Single-shaft shape: Typically rolled-steel cylindrical (or welded polygonal) shafts, with diameters ranging 0.5–2m (scaled by tower height).
Height range: 10–60m (customizable for 5G microstations or urban communication hubs).
Integrated components: Built-in internal climbing ladders (with fall-arrest systems), external antenna brackets, and optional camouflage (e.g., billboard wraps).
Tapered design: Slightly narrower at the top to optimize wind load resistance (suitable for urban wind conditions up to 180km/h).

⇔What is the main body of monopole tower?

⇔What is the Bottom Flange, Ladder and Platform of monopole tower?

⇔What is the main body of monopole tower after Hot Dip Galvanized?
