28M Bionic Tree Tower combining natural tree aesthetics with advanced modular construction for versatile infrastructure deployment

Büyük resim : 28M Bionic Tree Tower combining natural tree aesthetics with advanced modular construction for versatile infrastructure deployment

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Jiayao
Sertifika:	ISO9001:2008 COC
Model numarası:	Biyonik Ağaç Kulesi

Ödeme & teslimat koşulları:

Min sipariş miktarı:	4 Ton
Fiyat:	US$1400-1600,1-100Tons;US$1000-1200,>=100 Tons
Ambalaj bilgileri:	Ahşap Kutularda Paketlenir veya Galvanizli Saclarla Paketlenir
Teslim süresi:	15 gün
Ödeme koşulları:	L/C, T/T
Yetenek temini:	Ayda 500 ton

İletişim Şimdi konuşalım.

28M Bionic Tree Tower combining natural tree aesthetics with advanced modular construction for versatile infrastructure deployment

Açıklama

Ürün adı:	Doğal ağaç estetiğini birleştiren 28M Biyonik Ağaç Kulesi	Malzeme:	ASTM A36 A572 Sınıf50
Somun ve Cıvata:	Not 8.8/6.8/4.8	Sertifika:	ISO9001:2008 COC
Yükseklik:	9-40 m	Standart:	ANSI/TIA-222-G/H/F, EN 1991-1-4 ve EN 1993-3-1
Rüzgar Hızı:	0-300KM/H	Galvanizleme Standardı:	ASTM A123/ ISO 1461
Çevresel Etki:	Çevre dostu	Korozyon önleyici tedavi:	sıcak daldırma galvanizli
Ömür boyu:	20 yıldan fazla	Kaynak:	AWS D1.1
Tip:	Yapay Ağaç Yapısı	Özelleştirme:	Farklı Renk ve Boyutlarda Mevcuttur
Başvuru:	Hem Kentsel hem de Kırsal Alanlara Uygun	Çalışma gürültüsü:	Düşük gürültü salınımı
Kurulum Konumu:	Kentsel ortamlar	Kurulum yeri:	Kentsel alanlar ve şehir merkezleri
Konum:	Kentsel ortamlar
Vurgulamak:	28M bionic tree tower modular construction , bionic tree tower versatile infrastructure , natural tree aesthetics modular tower

28M Bionic Tree Tower combining natural tree aesthetics with advanced modular construction for versatile infrastructure deployment 0

JIAYAO CO., LTD

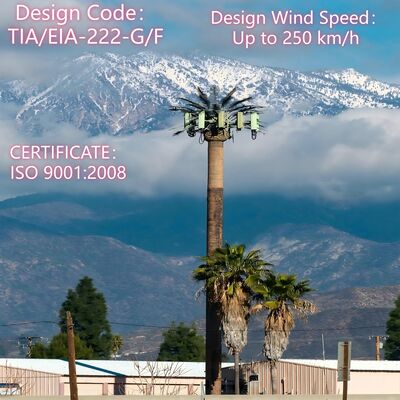

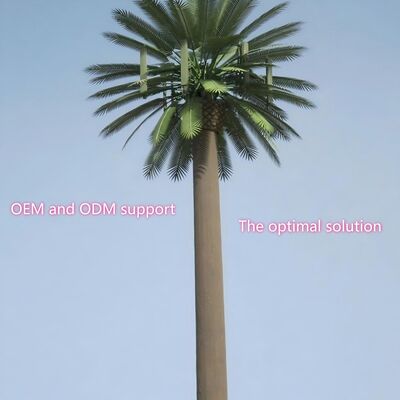

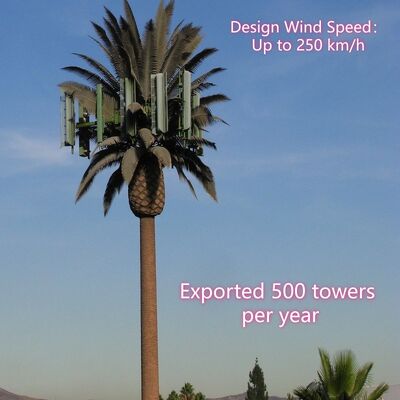

Bionic tree tower, also known as an artificial tree tower, is an innovative structure designed to replicate the look of natural trees while serving critical infrastructure purposes. Unlike traditional towers that often stand out visually, this tower blends seamlessly into landscapes, making it a preferred choice for areas where aesthetic harmony and functionality are both priorities.

1.Specifications

Design
1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153

Core Structural & Design Features

Tree-Like Appearance: It features artificial trunks, branches, and even leaves made from durable materials like fiberglass or high-strength plastics, closely resembling real trees in shape, color, and texture.

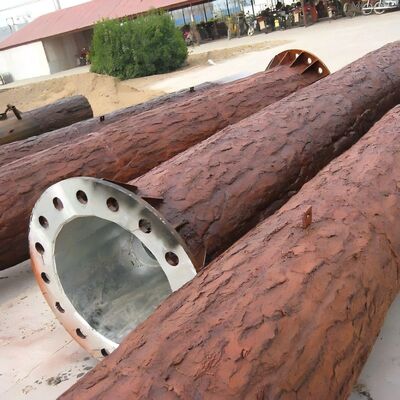

Modular Construction: The tower is built with modular components, allowing customization in height (typically 5m to 30m) and “tree species” to match local flora, such as pine, palm, or oak trees.

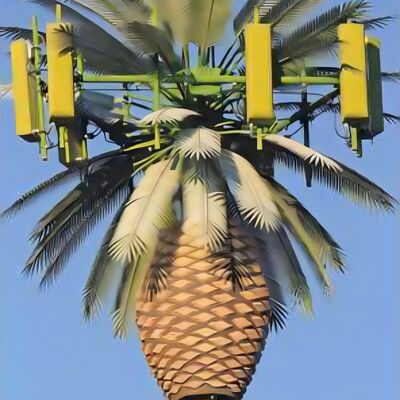

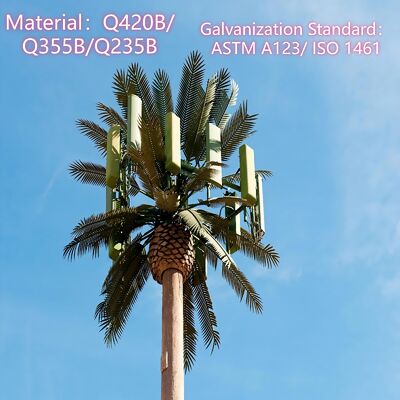

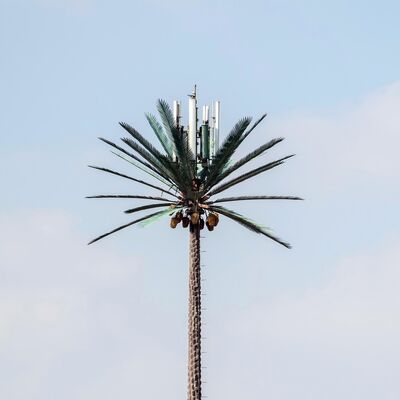

Integrated Functionality: Equipped with hidden platforms, antenna mounts, and cable management systems to support telecommunications equipment (5G/4G antennas, microwave devices), environmental sensors, or even small wind/solar energy harvesters.

Key Materials & Manufacturing Standards

Primary Materials: High-quality fiberglass, UV-resistant plastics, and galvanized steel for the internal support structure, ensuring both durability and corrosion resistance.
Manufacturing Compliance: Follows industry standards like ASTM D256 for impact resistance of plastic components and ISO 1461 for galvanization, guaranteeing long-term performance in outdoor conditions.
Aesthetic Details: Leaves and branches are designed to withstand extreme weather (high winds, heavy snow) and maintain colorfastness for years, using advanced pigmentation techniques.

2.Product Detail
